As a senior fertilizer production engineer with over 15 years of experience in NPK fertilizer manufacturing, I’ve spent countless hours optimizing the urea-phosphate NPK granulation process for maximum efficiency, product quality, and cost-effectiveness. At Huaxin Machinery, we’ve refined this process to address the unique challenges of urea-phosphate-based NPK fertilizers—such as nutrient uniformity, granule strength, and moisture control—while leveraging cutting-edge NPK granulation equipment design. In this guide, I’ll walk you through every critical step of the process, its advantages, key equipment requirements, and how Huaxin Machinery’s solutions elevate production outcomes for industrial fertilizer manufacturers.
What Is Urea-Phosphate NPK Fertilizer?
Before diving into the granulation process, let’s clarify what urea-phosphate NPK fertilizer is and why it’s a game-changer for modern agriculture. Urea-phosphate (also called urea phosphate or phosphoric acid urea) is a high-efficiency compound fertilizer that combines nitrogen (from urea) and phosphorus (from phosphoric acid) in a single, water-soluble crystal structure. When blended with potassium (K) and other micronutrients, it forms a balanced NPK compound fertilizer with a typical nutrient ratio of 18-46-0 (urea-phosphate base) or customized ratios like 15-15-15, 20-10-10 for specific crops—ideal for high-yield crop farming.
Key Advantages of Urea-Phosphate NPK Fertilizer
- High Nutrient Availability: Urea-phosphate NPK fertilizer dissolves quickly in soil, releasing nitrogen and phosphorus in a plant-absorbable form. Unlike traditional fertilizers, it avoids nutrient fixation in alkaline soils, ensuring up to 30% higher nutrient utilization efficiency—a top priority for sustainable agriculture practices.
- Balanced Crop Nutrition: The acidic nature of urea-phosphate (1% solution pH = 1.89) helps neutralize alkaline soils, improving root zone conditions for optimal nutrient uptake. It supports early-stage crop growth (root development, seedling vigor) and sustained nutrient release for late-stage yield formation, making it perfect for cash crop production and cereal farming.
- Excellent Physical Properties: When granulated properly via theurea-phosphate NPK granulation process, these fertilizers form hard, spherical granules (2-4mm) with low moisture content (<2%), reducing caking, dust generation, and nutrient loss during fertilizer storage and transportation.
- Versatility: Suitable for a wide range of crops, including cereals (wheat, corn), cash crops (cotton, tobacco), fruits, and vegetables. It works well in both drip irrigation systems and broadcast fertilizer application.
Core Urea-Phosphate NPK Granulation Process (Step-by-Step)
The urea-phosphate NPK granulation process is a wet granulation method that combines chemical reaction, material mixing, granulation, drying, cooling, and screening. Unlike simple physical blending (BB fertilizer), this process ensures molecular-level nutrient uniformity, where every granule contains the exact N-P-K ratio—critical for consistent crop performance. Below is a detailed breakdown of each step, based on Huaxin Machinery’s industrial production standards, trusted by global fertilizer producers.
Step 1: Raw Material Selection & Preparation
The quality of raw materials directly determines the final fertilizer quality. We strictly select high-purity raw materials to avoid impurities that affect granulation or harm crops— a key factor in high-quality NPK fertilizer production:
- Urea: Prilled urea (N ≥ 46%, moisture ≤ 0.5%)—the primary nitrogen source for urea-phosphate NPK fertilizers.
- Phosphoric Acid: Industrial-grade phosphoric acid (H₃PO₄ ≥ 85%)—reacts with urea to form urea-phosphate slurry, the backbone of the urea-phosphate granulation process.
- Potassium Source: Potassium chloride (KCl ≥ 60%) or potassium sulfate (K₂SO₄ ≥ 50%)—provides potassium; choose potassium sulfate forchlorine-sensitive crop fertilizer (fruits, vegetables).
- Additives: Binders (lignosulfonate), anti-caking agents (talcum powder), and micronutrients (zinc, boron, magnesium)—improve granule strength, prevent caking, and enrich nutrition forcomplete crop nutrition.
Preparation Actions:
- Crush lumpy raw materials (e.g., potassium chloride) to 80-100 mesh for uniform mixing—essential for consistent NPK granule quality.
- Preheat phosphoric acid to 60-70°C to reduce viscosity and enhance reaction efficiency, a critical step in efficient urea-phosphate synthesis.
Step 2: Urea-Phosphate Slurry Synthesis
This is the chemical core of the urea-phosphate NPK granulation process: urea reacts with phosphoric acid to form urea-phosphate slurry, which acts as both a nutrient carrier and a binder for granulation— a key differentiator from traditional NPK granulation methods.
Reaction Principle: CO(NH₂)₂ + H₃PO₄ → CO(NH₂)₂·H₃PO₄ (urea-phosphate, soluble salt)—the foundation of water-soluble NPK fertilizer production.
Process Control:
- Add urea and preheated phosphoric acid to a stainless steel reactor in a molar ratio of 1:1.1-1.2 (excess phosphoric acid ensures complete urea reaction), a standard practice in industrial urea-phosphate production.
- Maintain reaction temperature at 80-90°C and stir continuously for 30-40 minutes to form a homogeneous, viscous slurry (solid content 60-70%, pH 3.0-3.5)—optimal for granulation.
- Filter the slurry to remove insoluble impurities, ensuring a smooth granulation process and high-purity NPK granules.
Step 3: Raw Material Mixing
Mix the urea-phosphate slurry with potassium salt, additives, and micronutrients in precise proportions to meet the target NPK ratio—critical for customized NPK fertilizer production.
Equipment: Huaxin Horizontal Double-Shaft Mixer—the core mixing equipment for NPK fertilizer production lines, trusted for its reliability.
Process:
- Add solid materials (potassium salt, additives) first and dry-mix for 5 minutes to homogenize—ensuring uniform nutrient distribution.
- Spray the urea-phosphate slurry evenly onto the solid materials while mixing for another 10-15 minutes. The slurry acts as a binder, coating solid particles and forming amoist, plastic mixture (moisture 12-15%) ideal for granulation— a key step in high-efficiency NPK granulation.
- Key Control: Mixing uniformity ≥ 95%—critical for ensuring every granule has the same nutrient content, a must for consistent crop fertilizer performance.

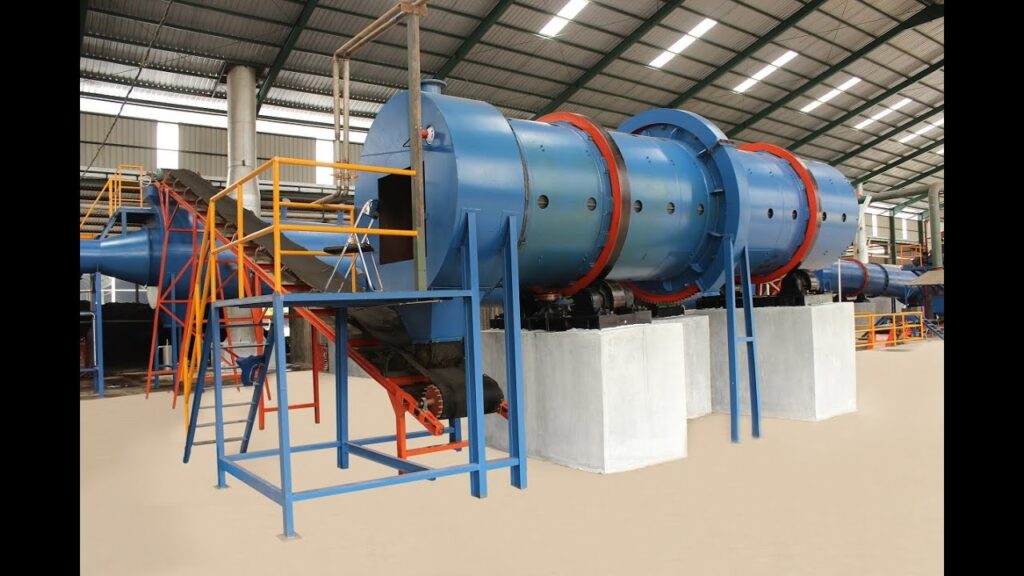

Step 4: Granulation (Critical Step for Granule Formation)
Granulation transforms the moist mixture into spherical granules. For urea-phosphate NPK, rotary drum granulation is the most widely used method in industrial production due to its high capacity and adaptability— the preferred choice for large-scale NPK fertilizer manufacturing.
Equipment: Huaxin Rotary Drum Granulator—the flagship granulation equipment for urea-phosphate NPK production, designed for durability and efficiency.
Working Principle: The inclined rotating drum (angle 3-5°, speed 10-15 rpm) uses mechanical friction and the adhesive effect of the urea-phosphate slurry to aggregate small particles into larger granules— the core of rotary drum NPK granulation technology.
Process Control:
- Feed the moist mixture into the granulator at a constant rate—essential for stable granulation output.
- Control drum speed and inclination to ensure particles roll and collide evenly, forming spherical granules (2-4mm)—the ideal size for fertilizer application efficiency.
- Spray a small amount of urea-phosphate slurry as a binder if particle adhesion is insufficient, optimizing granule strength and shape.
- Performance Index: Granulation rate ≥ 85% (granules 2-4mm)—higher rates mean lower raw material waste, a key factor in cost-effective NPK production.
Step 5: Drying
Freshly granulated fertilizer has high moisture content (12-15%), which causes caking and reduces granule strength. Drying removes excess moisture to ≤2%—a critical step inurea-phosphate NPK fertilizer quality control.
Equipment: Huaxin Rotary Dryer—equipped with an LRF-60 hot air furnace (customizable for different capacities), the industry standard for NPK fertilizer drying equipment.
Process:
- Feed wet granules into the rotating dryer (temperature 180-220°C at the inlet, 80-100°C at the outlet)—optimized for energy-efficient fertilizer drying.
- Hot air flows countercurrently to the granules, evaporating moisture efficiently—reducing energy consumption and ensuring uniform drying.
- Control drying time (20-30 minutes) to avoid over-drying (which causes granule cracking) or under-drying (which leads to caking)—protecting granule integrity.
Step 6: Cooling
Hot granules (80-100°C) from the dryer are prone to reabsorbing moisture and caking. Cooling reduces temperature to ≤40°C, stabilizing granule structure— a necessary step in preventing fertilizer caking.
- Equipment: Huaxin Rotary Cooler—structurally similar to the dryer but uses ambient air or chilled air for cooling, designed for efficient NPK granule cooling.
- Process: Countercurrent cooling ensures uniform temperature reduction, preventing thermal stress and granule breakage—maintaining high-quality NPK granules.
Step 7: Screening & Crushing
Screening separates qualified granules (2-4mm) from unqualified ones (fine powder <2mm, large granules >4mm)—a key step in consistent NPK fertilizer production.
Equipment: Huaxin Vibrating Screen—multi-layer design for precise classification, the top choice for NPK granule screening equipment.
Process:
- Qualified granules (2-4mm) are sent to the coating process—ready for final fertilizer packaging.
- Unqualified large granules are crushed by a Huaxin Double-Roll Crusher and returned to the granulator for re-granulation—minimizing waste in urea-phosphate NPK production.
- Fine powder is recycled to the mixing section, ensuring 100% raw material utilization and cost-effective fertilizer manufacturing.
Step 8: Coating (Anti-Caking & Quality Enhancement)
Coating forms a protective film on granule surfaces, preventing caking, reducing dust, and slowing nutrient release (optional slow-release effect)—a value-added step for premium NPK fertilizer.
- Coating Materials: Anti-caking agents (paraffin wax, talcum powder), colorants, and slow-release agents (sulfur, polymer)—used in anti-caking NPK fertilizer production.
- Equipment: Huaxin Coating Machine—rotary drum design with spray nozzles for uniform coating, ideal forNPK granule coating.
- Process: Spray coating materials onto granules while rotating, ensuring a thin, even film—enhancing fertilizer shelf life and application performance.
Step 9: Finished Product Packaging
Qualified coated granules are weighed and packaged into 25kg/50kg bags usingHuaxin Automatic Packaging Machines—high precision (±15g) and speed (10-15 bags/min) for efficient mass production, a key component of industrial NPK fertilizer packaging lines.
Why Choose Huaxin Machinery for Urea-Phosphate NPK Production?
- Customized Solutions: We design tailored production lines based on your capacity requirements, local raw material characteristics, and crop nutrient needs—perfect for custom NPK fertilizer production.
- High-Quality Equipment: All core equipment uses 304 stainless steel for corrosion resistance (critical for handling acidic urea-phosphate slurry) and long service life—ensuring reliable NPK production equipment.
- Energy Efficiency: Our LRF-60 hot air furnace and optimized dryer/cooler design reduce energy consumption by 20-30% compared to traditional equipment, lowering production costs for cost-effective NPK manufacturing.
- E-E-A-T Credibility: We’ve delivered over 200 NPK production lines globally (Southeast Asia, Africa, Middle East) with a 98% client satisfaction rate. Our engineering team holds 12+ patents in fertilizer granulation technology, ensuring authoritative, field-proven solutions for urea-phosphate NPK production.
- One-Stop Service: From process design and equipment manufacturing to installation, commissioning, and operator training—we provide end-to-end support to ensure your production line runs smoothly, ideal for global fertilizer producers seeking hassle-free solutions.
FAQ (Frequently Asked Questions)
Q1: What is the typical capacity range of Huaxin Machinery’s urea-phosphate NPK production lines?
A: We offer customized lines with capacities from 1 ton/hour (small-scale) to 20 tons/hour (large-scale) to meet different production needs—perfect for both small fertilizer plants and industrial NPK manufacturers.
Q2: What is the granulation rate of your rotary drum granulator?
A: Our GZ-series granulators achieve a granulation rate of ≥85% (2-4mm granules), with unqualified materials fully recycled to minimize waste—optimizing cost-effective urea-phosphate NPK production.
Q3: Can your equipment produce customized NPK ratios (e.g., 15-15-15, 20-10-10)?
A: Yes. Our mixing system allows precise proportioning of urea-phosphate slurry, potassium salt, and additives to produce any target NPK ratio for specific crops—ideal for custom NPK fertilizer production tailored to crop needs.
Q4: What is the moisture content of the final fertilizer product?
A: Our drying system controls the final moisture content at≤2%, ensuring no caking during storage and transportation—critical for high-quality urea-phosphate NPK fertilizer.
Q5: How long does it take to install and commission a complete production line?
A: For a standard 5-10 ton/hour line, installation and commissioning take 30-45 days after equipment delivery. We provide on-site engineer support for the entire process—minimizing downtime for industrial NPK production.
Q6: What is the warranty period for your equipment?
A: We offer a 12-month warranty for all core equipment, plus lifelong maintenance support and spare parts supply at cost price—ensuring reliable operation of your urea-phosphate NPK production line.
Q7: Can your equipment handle chlorine-free NPK fertilizers (for fruits/vegetables)?
A: Absolutely. We can design lines using potassium sulfate (instead of potassium chloride) to produce chlorine-free urea-phosphate NPK fertilizers—perfect for chlorine-sensitive crop farming.
Q8: What is the energy consumption per ton of fertilizer produced?
A: Our energy-efficient design reduces consumption to ≤60 kWh/ton, 20-30% lower than traditional production lines—lowering costs for energy-efficient NPK manufacturing.
Q9: Do you provide operator training after commissioning?
A: Yes. We provide free on-site operator training (1-2 weeks) covering equipment operation, maintenance, and process optimization to ensure your team can run the line independently—supporting smooth NPK production.
Q10: What is the delivery time for a complete production line?
A: Standard equipment delivery takes 45-60 days after order confirmation. Customized lines may take 60-90 days based on complexity—timely delivery for global fertilizer producers.
