Organic fertilizers play a pivotal role in sustainable agriculture, enriching soil health and reducing reliance on chemical inputs. However, their effectiveness and practicality hinge heavily on the organic fertilizer granulation process—a critical step that transforms raw organic materials into easy-to-handle, nutrient-dense pellets. Beyond enhancing product appearance, granulation improves nutrient release, simplifies storage and transportation, and ensures uniform application. This guide breaks down every aspect of the process, from raw material selection to quality control, to help you master organic fertilizer pellet production.
Raw Material Selection and Preprocessing
The foundation of successful granulation lies in choosing the right raw materials and preparing them properly.
Suitable Raw Materials
Common organic materials ideal for granulation include:
- Livestock manure (cow, chicken, pig): Rich in nitrogen, phosphorus, and potassium but requires thorough treatment to eliminate pathogens.
- Crop straw (wheat, corn, rice): High in fiber, which aids in binding particles but needs processing to reduce toughness.
- Kitchen waste and agricultural by-products (fruit peels, seed cakes): Offer diverse nutrients but must be free of contaminants like plastics.
Each material has unique properties: manure is moisture-rich and sticky, while straw is dry and fibrous. These characteristics directly influence granulation efficiency and pellet quality.
Preprocessing Steps

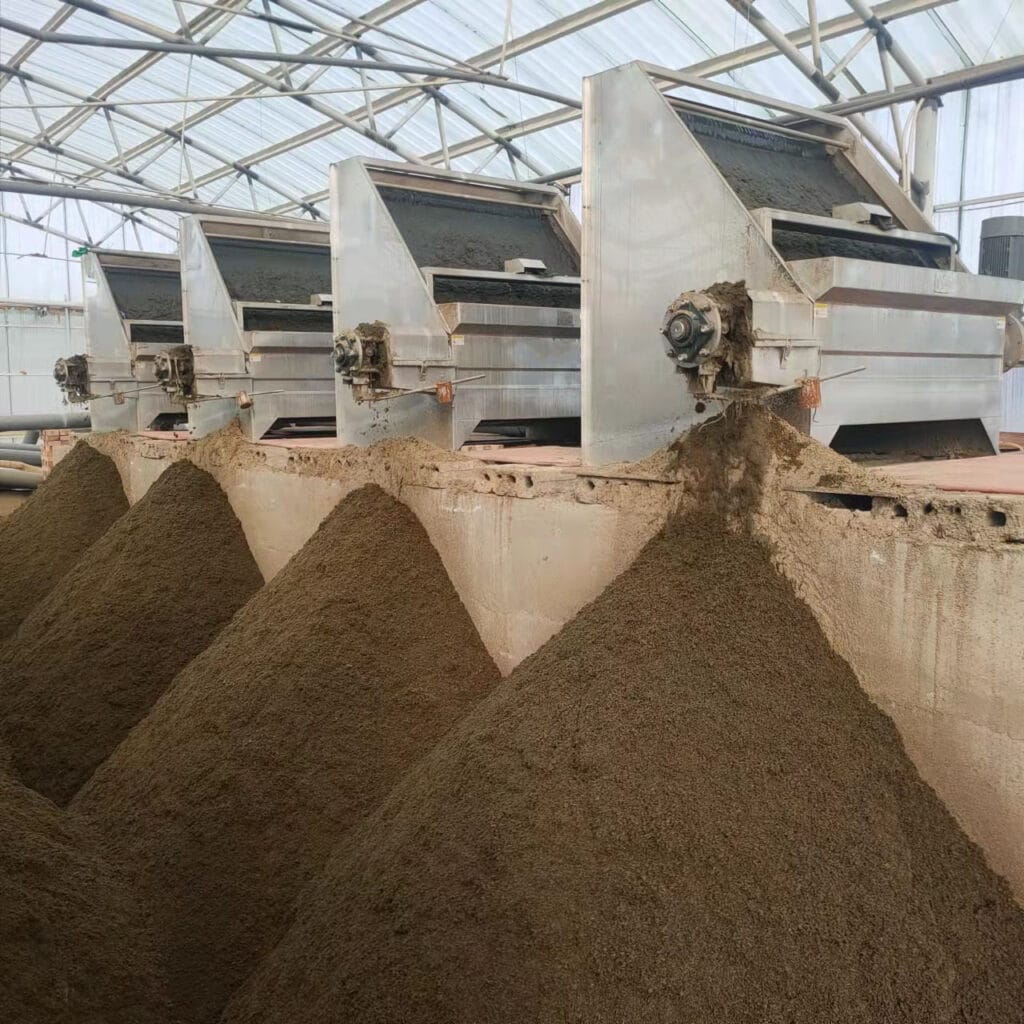

- Composting/fermentation: The raw materials undergo controlled decomposition to kill pathogens, reduce odors, and break down crude fiber. This step stabilizes the nutrients, making them more accessible to plants.
- Crushing: The fermented material is crushed into particles (1-3 mm) to ensure uniform mixing and improve granulation efficiency. Uneven particle size will result in soft or irregular particles.
- Decontamination: Stones, plastics, and metal fragments are filtered out to protect equipment and avoid product contamination.
Common Organic Fertilizer Granulation Technologies
Several methods are widely used for organic fertilizer granulation, each suited to different production scales and material types.

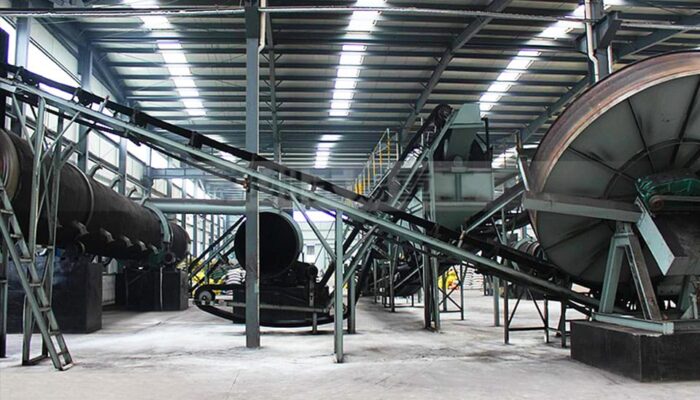

Disc Granulation
- Principle: Materials are fed into a rotating disc (30–50° tilt), where centrifugal force and friction cause them to roll into spherical pellets. Water or binders are sprayed to enhance adhesion.
- Equipment: A rotating disc, drive motor, and spray system.
- Advantages: Simple structure, low investment, and adaptability to various organic materials. Produces smooth, round pellets ideal for small to medium-scale operations.
- Challenges: Relies heavily on operator skill to adjust disc speed and moisture levels; output is limited compared to large-scale methods.

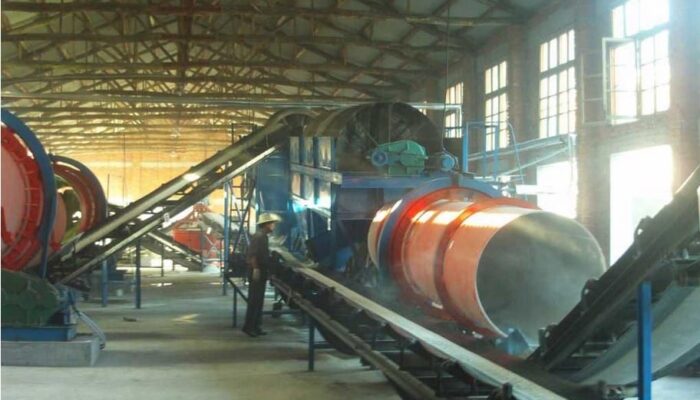

Drum Granulation
- Principle: Materials tumble inside a rotating drum, lifted by internal baffles to form pellets through continuous collision and binding. Often paired with a disc granulator for shaping.
- Equipment: A large rotating drum, baffle system, and optional drying unit.
- Advantages: High throughput (suitable for large-scale production), low energy consumption, and consistent pellet quality.
- Challenges: Requires more space and higher initial investment; strict control of material moisture (15–20%) is critical to avoid clumping.

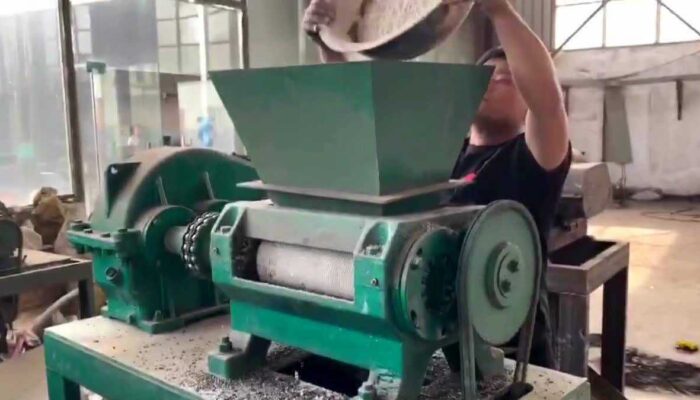

Extrusion Granulation
This method uses mechanical pressure to form pellets, with three common types:
- Roller extrusion: Materials are pressed between two counter-rotating rollers with molds, producing pellets of custom shapes (e.g., cylinders, ovals).
- Flat-die extrusion: A flat die with holes and a rotating roller push materials through the die, forming cylindrical pellets.
- Ring-die extrusion: Similar to flat-die but with a cylindrical die, offering higher efficiency for large-scale production.
- Advantages: No drying required for low-moisture materials; high pellet strength and customizable shapes.
- Challenges: Molds wear quickly with abrasive materials (e.g., straw); requires precise pressure control to avoid pellet cracking.
Optimizing Granulation Parameters
Fine-tuning key parameters is essential for high-quality pellets:
- Moisture content: Ideal levels range from 15–25%, depending on the method. Too much moisture causes sticking; too little results in loose pellets.
- Binder selection: Natural binders like molasses, starch, or clay improve pellet strength. Usage varies (1–5% of raw materials) based on material stickiness.
- Temperature and time: For heat-sensitive materials, keep granulation temperatures below 60°C to preserve nutrients. Longer granulation times (30–60 minutes) enhance pellet density but increase energy use.
Post-Processing Steps
After granulation, pellets undergo additional steps to meet quality standards:
- Drying: Reduces moisture to 8–12% using rotary dryers or fluidized beds, preventing mold growth during storage.
- Cooling: Pellets are cooled to room temperature to stabilize structure and prevent moisture reabsorption.
- Screening: Vibrating screens remove undersized or oversized pellets, ensuring uniform particle size (2–6mm typical).
- Coating: Optional film coating (with materials like humic acid) improves water resistance, controls nutrient release, and enhances shelf appeal.
Quality Control and Testing
Consistent quality is non-negotiable. Key checks include:
- Pellet strength: Tested using hardness meters to ensure pellets resist crumbling during transport (target: >2kg/cm²).
- Particle size distribution: Analyzed via sieving to confirm 90% of pellets fall within the desired range.
- Nutrient content: Lab tests verify NPK levels and organic matter content, ensuring compliance with standards (e.g., ≥30% organic matter for organic fertilizers).
Case Studies and Industry Trends
- Small-scale farm: A family farm in China uses disc granulation to process chicken manure, producing 5 tons/day of pellets. This reduced storage space by 40% and increased fertilizer value by 30%.
- Large plant: A European facility employs ring-die extrusion with straw and manure blends, achieving 50 tons/day output with 95% pellet uniformity.
Emerging trends include:
- Eco-friendly binders (e.g., seaweed extract) to replace synthetic options.
- Smart granulation systems with sensors for real-time moisture and temperature control.
- Blended formulas combining organic matter with bio-stimulants for enhanced soil health.
Conclusion
The organic fertilizer granulation process is a cornerstone of profitable, sustainable agriculture. By selecting the right materials, optimizing parameters, and adopting suitable technology, producers can create high-quality pellets that benefit both farmers and the environment. Continuous refinement and adoption of new technologies will further elevate the efficiency and impact of organic fertilizer production.
