As a senior engineer at Huaxin Machinery with over 15 years of experience infertilizer production line design, I’ve led more than 80 NPK granulation plant projects worldwide—from small-scale 50-ton/day lines to large industrial facilities with 500,000 tons/year capacity. In this guide, I’ll share our proven expertise in NPK granulation plant layout design, covering core principles, NPK production process flow optimization, fertilizer plant equipment arrangement strategies, and real-world project insights to help you build a high-efficiency, cost-effective, and sustainable NPK fertilizer plant. We’ll also dive into NPK granulation plant cost optimization and industrial NPK plant design best practices—key topics for anyone investing in fertilizer production.
1. Core Principles of NPK Granulation Plant Layout Design
Before diving into specific layout designs, it’s critical to master the 5 foundational principles that guide all our NPK plant projects. These principles ensure the layout balances efficiency, cost, safety, and scalability—key factors for long-term operational success, especially for industrial NPK granulation plants and commercial NPK fertilizer factories. Adhering to these principles also helps avoid costly reworks and ensures compliance with NPK plant design standards.
1.1 Process Flow Priority
The primary goal of layout design is to streamline material flow from raw material input to finished product output, a key factor in high-efficiency NPK production. We always arrange equipment and functional zones in strict accordance with the NPK fertilizer manufacturing process sequence, avoiding backflow, cross-contamination, or redundant material handling—common issues that reduce NPK plant productivity. A smooth linear or L-shaped flow minimizes bottlenecks and ensures continuous NPK fertilizer production, which is essential for meeting industrial NPK fertilizer demand.
1.2 Space Optimization & Compactness
Land and construction costs are major investments for any fertilizer plant. Our design philosophy emphasizes maximizing space utilization through compact equipment arrangement and multi-dimensional (vertical/horizontal) layout—critical for small-scale NPK granulation plants with limited land and medium-scale NPK fertilizer plants looking to optimizeNPK granulation plant cost. For small to medium plants (50–200 tons/day), we typically use a single-story compact layout; for large-scale facilities (≥200 tons/day), a multi-layer design reduces floor space by 30–40%, lowering NPK plant construction costs and long-term NPK plant operational costs.
1.3 Capacity Matching & Buffer Design
Key equipment must follow the 1:1.2 capacity matching principle: the rated capacity of the NPK granulator is slightly lower than the processing capacity of downstream drying equipment. This reserves buffer space to prevent system blockage from material accumulation, a common issue in low-efficiency NPK plants that leads to lost production time. We also install buffer silos between critical equipment (e.g., between mixer and granulator) to stabilize capacity fluctuations and avoid full-line shutdowns due to single equipment issues—essential for reliable NPK production and consistent NPK fertilizer output, which is vital for NPK fertilizer business profitability.
1.4 Safety & Environmental Compliance
NPK production involves dust, high temperatures, and chemical materials, so safety and environmental protection are non-negotiable—especially for eco-friendly NPK granulation plants compliant with global standards and sustainable NPK fertilizer production goals. Our layouts include:
- Clear separation of hazardous zones (high-temperature drying, dust generation) from office and worker areas
- Centralized NPK plant dust removal systems covering all dust-generating points (feeding, screening, packaging)
- Wide fire lanes, emergency exits, and anti-slip flooring in production zones
- Negative pressure systems in fermentation/processing areas to control odor emissions, meeting ISO 14001 NPK plant standards
1.5 Flexibility & Scalability
A good layout must adapt to future market changes and production upgrades—critical for scalable NPK granulation plants and growing NPK fertilizer businesses. We design modular NPK plant layouts that allow easy expansion of production capacity (e.g., adding a second granulation line) or switching between granulation processes (rotary drum granulation vs. roller extrusion granulation) without major reconstruction, ensuring your plant stays competitive in the global NPK fertilizer market and can adapt to changing NPK fertilizer trends.
2. Key Functional Zones in NPK Granulation Plant Layout
A standard NPK granulation plant is divided into 6 core functional zones, each with specific layout requirements and equipment configurations. Below is a detailed breakdown of each zone’s design considerations and equipment arrangement—essential knowledge for NPK plant layout planning, NPK plant design and engineering, and anyone looking to build or upgrade an industrial NPK fertilizer plant.
2.1 Raw Material Storage & Batching Zone
This zone is the “starting point” of production, responsible for storing and proportioning raw materials (nitrogen: urea/ammonium sulfate; phosphorus: ammonium phosphate; potassium: potassium chloride; additives: clay, lime)—a critical step in high-quality NPK fertilizer production and consistent NPK nutrient content. Proper design of this zone also reduces NPK raw material waste and optimizes NPK plant material handling efficiency.
- Layout Requirements: Located at the entrance of the plant for easy raw material delivery; close to the mixing zone to minimize conveying distance; equipped with rainproof, moisture-proof, and ventilation facilities to protect NPK raw materials from degradation—critical for high-quality NPK fertilizer production and avoiding NPK raw material loss. This layout also optimizes NPK plant logistics and reduces material handling costs.
- Equipment Configuration: Raw material silos (steel/concrete), automatic NPK batching system (DCS-controlled), belt conveyors, and crushers (for lump raw materials). For large plants, we use a multi-silo array with automated formula recall for precise batching—key forconsistent NPK fertilizer quality, accurate NPK nutrient ratio, and compliance with NPK fertilizer quality standards. This automation also reduces labor costs in NPK plants.
- Space Allocation: 20–30% of total plant area (varies by capacity: ~150㎡ for 50 tons/day, ~800㎡ for 200 tons/day)—a standard for efficient NPK plant space planning.
2.2 Mixing & Crushing Zone
After batching, raw materials are crushed to uniform particle size (≤2mm) and mixed thoroughly to ensure nutrient homogeneity—essential for uniform NPK granule production, consistent NPK fertilizer quality, and avoiding nutrient segregation in NPK granules. This step directly impacts the marketability of NPK fertilizer and customer satisfaction.
- Layout Requirements: Adjacent to the raw material batching zone and granulation zone; compact arrangement to reduce conveyor length, lowering NPK plant energy consumption and operational costs; dust-proof enclosure for crushers to control dust emissions, complying withenvironmental NPK plant regulations and workplace safety standards for NPK plants. This also improves worker safety in NPK granulation plants.
- Equipment Configuration: Hammer crushers, double-shaft mixers, and bucket elevators (to transport mixed materials to the granulator). For high-efficiency mixing, large plants use dual-line parallel mixing systems to ensure uninterrupted production—ideal for high-capacity NPK granulation plants.
2.3 Core Granulation Zone
Two Main Granulation Processes & Layouts:
1. Rotary Drum Granulation (Large-Scale Production, ≥200 tons/day):
- Layout: Linear arrangement with the rotary drum granulator (diameter 2.5–4m, length 6–12m) as the core; steam injection system installed alongside the drum for granulation aid—standard for large-scale NPK fertilizer production lines and industrial NPK plants. This layout optimizes rotary drum granulation efficiency and continuous NPK production.
- Advantages: High capacity (10–20 tons/hour), high particle roundness (≥90%), suitable for high-concentration NPK fertilizer (15-15-15, 18-18-18), ideal for industrial NPK plants targeting mass markets and large-scale NPK fertilizer distribution. This process also ensures high NPK granule strength, reducing breakage during storage and transport.
2. Roller Extrusion Granulation (Small-Medium Scale, 50–200 tons/day):
- Layout: Compact U-shaped arrangement; the roller compactor (double-roll design) occupies the central position, with material feeding and discharge ports aligned vertically—perfect for small-scale NPK granulation plants, medium-scale NPK fertilizer plants, and specialty NPK production facilities. This layout minimizes roller extrusion granulation plant footprint andconstruction costs.
- Advantages: Moderate investment, small footprint (~550㎡ for 50 tons/day), no drying required (dry granulation), ideal for low-to-medium concentration NPK and specialty NPK fertilizer production (e.g., organic-inorganic NPK, slow-release NPK). This process also reduces energy consumption in NPK granulation and is suitable for small NPK fertilizer businesses.
Key Layout Tip: The granulator must be positioned at a slight elevation (1.2–1.5m) to facilitate gravity feeding to downstream drying equipment, reducing energy consumption for material conveying— a key NPK plant cost-saving tip that lowers long-term NPK plant operational costs and improves overall NPK plant efficiency.
2.4 Drying & Cooling Zone
Wet granules from the granulator contain 3–5% moisture; this zone reduces moisture to ≤1% (drying) and cools granules to ~40°C (cooling) to prevent caking during storage—critical for stable NPK fertilizer storage, extended NPK fertilizer shelf life, and avoiding NPK granule caking issues. Proper drying and cooling also ensure consistent NPK fertilizer quality and marketability.
- Layout Requirements: Located immediately after the granulation zone (linear flow); arranged in a straight line (dryer → cooler) for seamless material transfer; equipped with heat insulation and noise reduction facilities, complying with NPK plant safety standards.
- Equipment Configuration: rotary dryer for NPK granules, rotary coolers, hot air furnaces (coal/gas/oil-fired), and induced draft fans. The dryer capacity must be 1.2× the granulator capacity to avoid material accumulation— a common NPK plant layout mistake to avoid, as it leads to reduced NPK plant productivity and increased maintenance costs. We also recommend energy-efficient rotary dryers to lower NPK plant energy consumption.
2.5 Screening & Coating Zone
This zone separates qualified granules (2–4mm) from oversized/fine particles and coats qualified granules with anti-caking or slow-release agents to enhance quality—essential for premium NPK fertilizer, high-value NPK products, and competitive advantage in the NPK market. Proper screening and coating also reduce NPK granule waste and improve customer satisfaction.
- Layout Requirements: Adjacent to the cooling zone; compact arrangement of screening and coating equipment; fine particle return system connected back to the granulator for reprocessing—maximizing NPK raw material utilization, reducing production waste, and lowering NPK granulation plant cost. This layout also optimizes screening and coating efficiency.
- Equipment Configuration: Multi-deck vibration screeners, chain crushers (for oversized granules), NPK granule coating drum, and spray systems. The screener is installed at a 5–10° angle for efficient particle separation—key for consistent NPK granule size, uniform NPK fertilizer appearance, and compliance with NPK fertilizer quality standards. Coating systems also enhance NPK granule anti-caking properties.

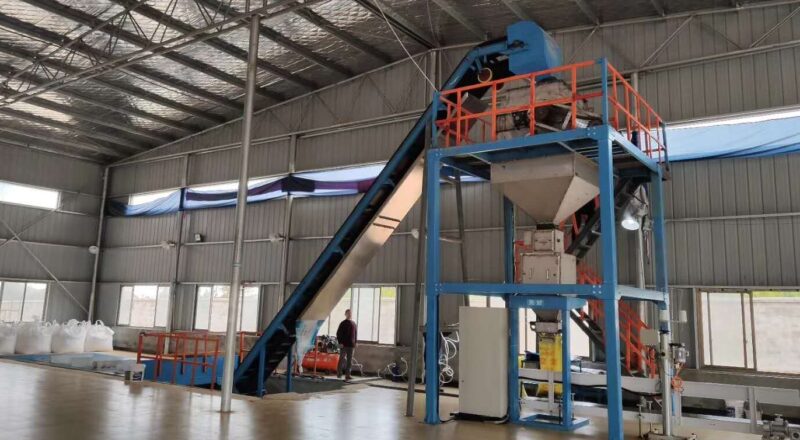

2.6 Finished Product Packaging & Storage Zone
The final stage: qualified coated granules are weighed, bagged, palletized, and stored before delivery—critical for efficient NPK fertilizer distribution, safe NPK product handling, and timely delivery to customers. Proper design of this zone reduces finished product damage and optimizes warehouse space utilization for NPK fertilizer storage.
- Layout Requirements: Located at the plant exit for easy loading; dry, dust-free, and moisture-proof; equipped with forklift access lanes and pallet storage racks—optimizing NPK finished product handling, loading efficiency, and warehouse operations. This layout also reduces logistics costs for NPK fertilizer delivery and minimizes finished product caking.
- Equipment Configuration: automatic NPK packaging machine, sewing machines, palletizers, and belt conveyors. For large plants, we integrate robotic palletizing systems to improve automation and reduce labor costs— a key NPK plant efficiency upgrade that lowers labor costs in NPK plants and improves packaging accuracy. This automation also ensures consistent NPK packaging standards.

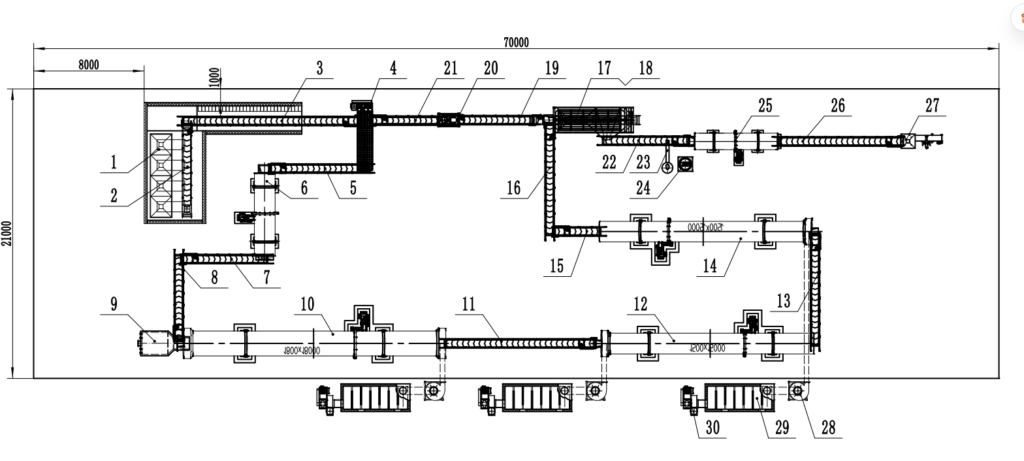

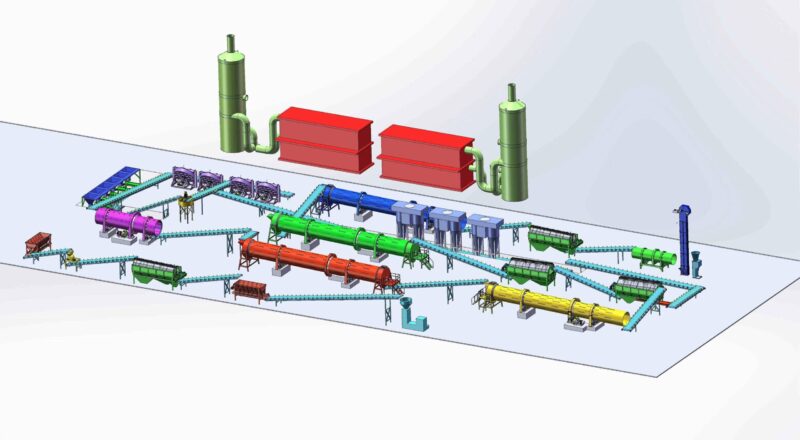

3. 3 Common NPK Granulation Plant Layout Designs (With Use Cases)
Based on our global project experience, we’ve summarized 3 practical layout designs for different site conditions, production capacities, and investment budgets—tailored to custom NPK plant solutions. Each design has unique advantages and is tailored to specific scenarios, helping you choose the best NPK granulation plant layout for your needs, whether you’re building a small-scale NPK plant, medium-scale NPK facility, orlarge industrial NPK factory.
3.1 Straight-Line Layout (Ideal for Open, Flat Sites)
- Design Structure: All functional zones (raw material → mixing → granulation → drying → cooling → screening → packaging) arranged in a straight line from one end of the plant to the other—simplest for large-scale NPK plant operation, high automation NPK plants, and continuous NPK production. This layout is ideal for industrial NPK fertilizer factories with ample land.
- Advantages:
1. Simplest flow with zero material backflow or cross-contamination
2. Easy to operate, maintain, and expand (add equipment at either end)—ideal for scalable NPK production and growing NPK fertilizer businesses looking to increase capacity without major reworks. This scalability ensures your plant can adapt to rising NPK fertilizer demand.
3. Lowest energy consumption for material conveying (shortest distance)—reducing NPK plant operational costs, energy bills, and carbon footprint, aligning with sustainable NPK production goals. - Best For: Large-scale plants (≥200 tons/day) on open plains; projects requiring high automation and continuous production—common for industrial NPK fertilizer factories, mass NPK fertilizer producers, and businesses targetingglobal NPK markets.
- Real Project Case: A 300,000 tons/year NPK plant in Thailand—straight-line layout with rotary drum granulation, DCS automation, and 30% lower energy consumption than similar plants—proving the value ofoptimized NPK plant layout for cost savings and high efficiency. This plant now meets Thai NPK fertilizer standards and supplies to regional markets.
3.2 L-Shaped Layout (Perfect for Limited Space)
- Design Structure: The production line bends at a 90° angle—raw material/mixing zones on one side, granulation/drying/packaging zones on the other—ideal for small-medium NPK plants with space constraints, urban NPK facilities, and industrial park NPK plants where land is limited.
- Advantages:
1. Saves 20–25% floor space compared to straight-line layout—critical forspace-saving NPK plant design, land-constrained NPK facilities, and reducing NPK plant construction costs by minimizing land acquisition expenses.
2. Separates raw material delivery and finished product loading (no truck congestion)—improving NPK plant logistics efficiency, loading/unloading speed, and reducing transportation delays for both raw materials and finishedNPK fertilizer.
3. Flexible for irregularly shaped sites (common in urban or industrial parks)—adapting to site-specific NPK plant layout needs and local land use regulations, making it ideal for regional NPK fertilizer producers. - Best For: Small-medium plants (50–200 tons/day); sites with space constraints or irregular boundaries—popular forregional NPK fertilizer production, local NPK suppliers, and businesses with moderate NPK production capacity goals.
- Real Project Case: A 100,000 tons/year NPK plant in Indonesia’s West Papua—L-shaped layout with dual granulation (rotary drum + roller extrusion) for multi-product production—supporting diversified NPK fertilizer lines (high-concentration and specialty NPK) and adapting to limited land space. This plant now serves Indonesian agricultural markets with tailored NPK products.
3.3 Circular/U-Shaped Layout (Optimal for Compact, Intensive Production)
- Design Structure: Functional zones arranged in a closed loop or U-shape—raw material input and finished product output on the same side—perfect for compact NPK granulation plants, small-scale NPK facilities, and specialty NPK production plants with strict land-use limits.
- Advantages:
1. Maximizes space utilization (smallest footprint for a given capacity)—ideal for land-constrained NPK plants, urban NPK facilities, and small NPK fertilizer businesses with limited capital for land acquisition.
2. Centralized management of all equipment (easy supervision and maintenance)—reducing NPK plant maintenance costs, downtime, and labor requirements for plant supervision, ideal for small NPK operations.
3. Reduces logistics costs (raw material delivery and finished product loading at the same gate)—optimizing NPK plant supply chain efficiency, transportation costs, and loading/unloading time for small to medium NPK producers. - Best For: Small-scale plants (≤100 tons/day);specialty NPK production (organic-inorganic blends); sites with strict land-use limits—common for custom NPK fertilizer plants, organic NPK producers, and small agricultural businesses focused on niche NPK markets.
- Real Project Case: A 50 tons/day organic-inorganic NPK plant in Tanzania—U-shaped layout with roller extrusion granulation, compact design, and 15% lower construction cost—proving cost-effective NPK plant layout is achievable forsmall NPK businesses. This plant now supplies local Tanzanian farmers with organic-inorganic NPK fertilizer.
4. Critical Mistakes to Avoid in NPK Granulation Plant Layout Design
After 15 years of troubleshooting and optimizing NPK plant layouts, I’ve identified 5 common mistakes that lead to low efficiency, high costs, or safety hazards—mistakes that can derail your NPK granulation plant project, increase NPK plant construction costs, and reduce long-term profitability. Avoiding these pitfalls is critical for a successful, profitable plant, whether you’re building a small-scale NPK plant or alarge industrial facility.
4.1 Ignoring Capacity Matching Between Equipment
Many clients make the mistake of mismatching granulator and dryer capacities (e.g., a 10 tons/hour granulator paired with a 15 tons/hour dryer). This causes material accumulation, frequent blockages, and reduced production efficiency—costing you time and money in NPK plant operations, maintenance costs, and lost production. Always follow the 1:1.2 capacity matching principle for optimal NPK production efficiency, smooth material flow, and maximum NPK plant productivity.
4.2 Overlooking Dust & Odor Control in Layout
Dust and odor are major pain points in NPK production, and non-compliance with environmental regulations can lead to fines or plant shutdowns—costly for any NPK fertilizer business. A common mistake is placing dust collectors far from dust-generating points (feeding, screening), leading to poor dust removal and environmental non-compliance. Our solution: centralized dust removal systems with ducts directly connected to all dust sources; negative pressure systems in processing zones to control odor—essential for eco-friendly NPK plant design, environmental compliance, and worker safety in NPK plants.
4.3 Inadequate Buffer Space for Material Flow
Insufficient buffer silos between key equipment (e.g., mixer and granulator) cause the entire line to shut down if one piece of equipment fails—disrupting continuous NPK production, losing production time, and reducing revenue. We always install intermediate buffer silos (capacity 5–10 minutes of production) between critical zones to stabilize flow, ensuring your plant runs smoothly, minimizes downtime, and maintainsconsistent NPK fertilizer output.
4.4 Unsafe Equipment Spacing & Narrow Aisles
To save space, some clients cram equipment too close together, resulting in narrow aisles (<1.2m) that hinder maintenance and emergency evacuation—violating NPK plant safety standards, workplace safety regulations, and putting workers at risk. Our safety standard: minimum 1.5m-wide main aisles for forklifts and workers; 0.8m clearance between equipment for maintenance—protecting your team, minimizing downtime due to maintenance delays, and ensuring safe NPK plant operation.
4.5 No Scalability for Future Expansion
A layout that meets only current production needs will become obsolete as market demand grows—wasting your investment in NPK granulation plant construction, equipment, and land. We always design modular layouts with reserved space for adding granulation lines, upgrading automation, or switching production processes—ensuring your plant adapts to changing NPK fertilizer market demands, growing customer needs, and evolving industry trends.
5. Huaxin Machinery's unique advantages in NPK granulation plant layout design
As a leading provider of NPK fertilizer production solutions, Huaxin Machinery stands out in layout design with our E-E-A-T (Expertise, Experience, Authority, Trust) strengths—helping you build a plant that outperforms competitors, maximizes ROI, and meets global NPK plant standards. Whether you need a custom small-scale NPK layout or a large industrial NPK plant design, we deliver solutions tailored to your goals.
- 15+ Years of Specialized Expertise: Our team of senior engineers focuses exclusively on fertilizer plant design, with deep knowledge of NPK production processes, granulation technologies, and global industry standards—ensuring professional NPK plant layout design, compliance with local regulations, and optimal NPK plant efficiency.
- 380+ Successful Global Projects: We’ve delivered NPK plant layouts across Southeast Asia, Africa, and the Middle East, adapting designs to local site conditions, raw material characteristics, and regulatory requirements—proven global NPK plant experience, local market knowledge, and ability to deliver site-specific NPK solutions.
- Customized Solutions for Every Client: No one-size-fits-all designs—we tailor layouts to your production capacity, fertilizer formula, site size, and budget, ensuring maximum ROI for your NPK granulation plant, whether you’re producing high-concentration NPK, specialty NPK, or organic-inorganic NPK.
- One-Stop Service: From site survey and layout design to equipment manufacturing, installation, commissioning, and worker training—we handle every step to ensure your plant runs smoothly, reducing the stress of NPK plant construction, equipment installation, and staff training for seamless NPK plant operation.
- Proven Cost & Efficiency Benefits: Our optimized layouts reduce energy consumption by 20–30%, construction costs by 15–20%, and improve production efficiency by 25–40% compared to industry averages—delivering cost-effective NPK plant solutions, lower operational costs, and higher profitability for your NPK business.
6. FAQ About NPK Granulation Plant Layout Design
Q1: What is the best layout for a 100 tons/day NPK plant?
A: For 100 tons/day capacity, an L-shaped layout with roller extrusion granulation is optimal. It balances space efficiency, cost, and production flexibility, suitable for most small-medium sites—ideal for medium-scale NPK granulation plants, regional NPK producers, and businesses looking to minimize NPK plant construction costs while maintaining high production efficiency.
Q2: How much land is needed for a 200 tons/day NPK granulation plant?
A: A standard 200 tons/day plant requires 2,500–3,500㎡ of land. A compact L-shaped or multi-layer layout can reduce this to ~2,000㎡—a key consideration for space-saving NPK plant planning, land-constrained sites, and reducing land acquisition costs for industrial NPK plants.
Q3: Can I switch between rotary drum and roller extrusion granulation in the same plant?
A: Yes. Our modular NPK plant layouts support dual granulation systems. You can switch between processes based on fertilizer type (high-concentration vs. specialty) or market demand—maximizing NPK plant versatility, product diversification, and adaptability to changing market needs, which is critical for NPK business growth.
Q4: What automation level is recommended for an NPK plant?
A: Small plants (≤100 tons/day): semi-automation (manual batching + automatic granulation) to minimize initial NPK plant investment. Medium-large plants (≥100 tons/day): full DCS automation (automatic batching, granulation, drying, and packaging) for precise control and labor savings—key for high-efficiency NPK plant operation, consistent product quality costs, and reduced labor.
Q5: How to ensure the layout complies with environmental regulations?
A: Key measures include: centralized dust removal (bag filters + cyclones), odor control (negative pressure + biofilters), wastewater recycling, and proper separation of hazardous zones. Our designs meet global environmental standards (ISO 14001)—ensuring eco-friendly NPK plant operation, environmental compliance, and avoiding fines or shutdowns for NPK fertilizer businesses.
Q6: What is the typical ROI period for an NPK granulation plant?
A: For a 50–200 tons/day plant, the ROI period is 1.5–3 years, depending on raw material costs, fertilizer selling price, and production efficiency. Our optimized layouts shorten ROI by 20–25%—delivering profitable NPK plant solutions, faster investment recovery, and long-term profitability for your NPK business.
Q7: Can you design a layout for an existing plant expansion?
A: Absolutely. We specialize in retrofit and expansion layouts—we’ll survey your existing site, equipment, and process, then design a seamless expansion plan that minimizes downtime and maximizes existing equipment utilization—ideal for scalable NPK plant growth, capacity expansion, and adapting to growing NPK market demand without major reworks.
Q8: What raw materials are suitable for roller extrusion granulation?
A: Roller extrusion is ideal for dry, powdery raw materials: ammonium sulfate, potassium chloride, urea, and organic additives (compost, humic acid). It’s not suitable for high-moisture (>5%) or sticky materials—critical knowledge for roller extrusion NPK plant design, raw material selection, and avoid granulation issues in small-scale NPK plants.
Q9: How to maintain consistent fertilizer quality with the layout design?
A: Our layouts ensure quality consistency through: precise automatic batching (±0.5% accuracy), uniform mixing, controlled granulation/drying temperatures, and multi-stage screening. Critical parameters are monitored in real time via the DCS system—ensuring high-quality NPK fertilizer production, consistent nutrient content, and compliance with NPK fertilizer quality standards, which is key for customer retention.
Q10: What after-sales support do you provide for layout design and plant operation?
A: We offer 24/7 global after-sales support: 1-year equipment warranty, free on-site installation/commissioning, worker training, remote troubleshooting, and lifetime spare parts supply. Our engineers are available to assist with any layout or operational issues—supporting long-term NPK plant success.
