Vertical Industrial Composter
Designed for large-scale organic waste treatment
Vertical Industrial Composter Introduction
The Vertical Industrial Composter is a highly efficient and environmentally friendly composting equipment designed for processing large-scale organic waste. It is suitable for livestock and poultry farms, food processing plants, municipal sludge treatment centers and many other scenarios.
Features and Advantages
Efficient Composting
Vertical composting technology is used to efficiently decompose organic waste with high processing capacity, greatly reducing the composting cycle.
Space saving
Vertical compact design with minimal footprint and multi-layer structure improves space utilization for limited space.
Energy Saving
No chemicals are added during the composting process, which is green and pollution-free, and the low energy consumption design effectively reduces the operation cost.
Automatic control
Adopting intelligent control system, automatic operation, real-time monitoring of the whole process of composting, to ensure the quality of composting.
Wide application
It can deal with various organic wastes such as livestock and poultry manure, food waste, urban sludge, etc., with diversified applications.
Customized service
Support customized design, according to the different needs of customers, to create exclusive composting equipment solutions.
Technical Parameters
| Parameter name | Parameter value |
|---|---|
| Single loading capacity | 20-200 m³ (volume) |
| Working temperature range | 50-75℃ (adjustable) |
| High temperature maintenance capacity | ≥55℃ for 5-7 days (in line with organic fertilizer fermentation standards) |
| Stirring method | Vertical screw stirring or pneumatic turning |
| Material | Main body Q345B carbon steel + inner wall 304 stainless steel. |
| Rated power | 5-30 kW (depending on capacity and mixing intensity) |
| Control | PLC control, touch screen operation |
Working Principle
An in-depth look at the efficient operation of vertical composting equipment
Working Principle

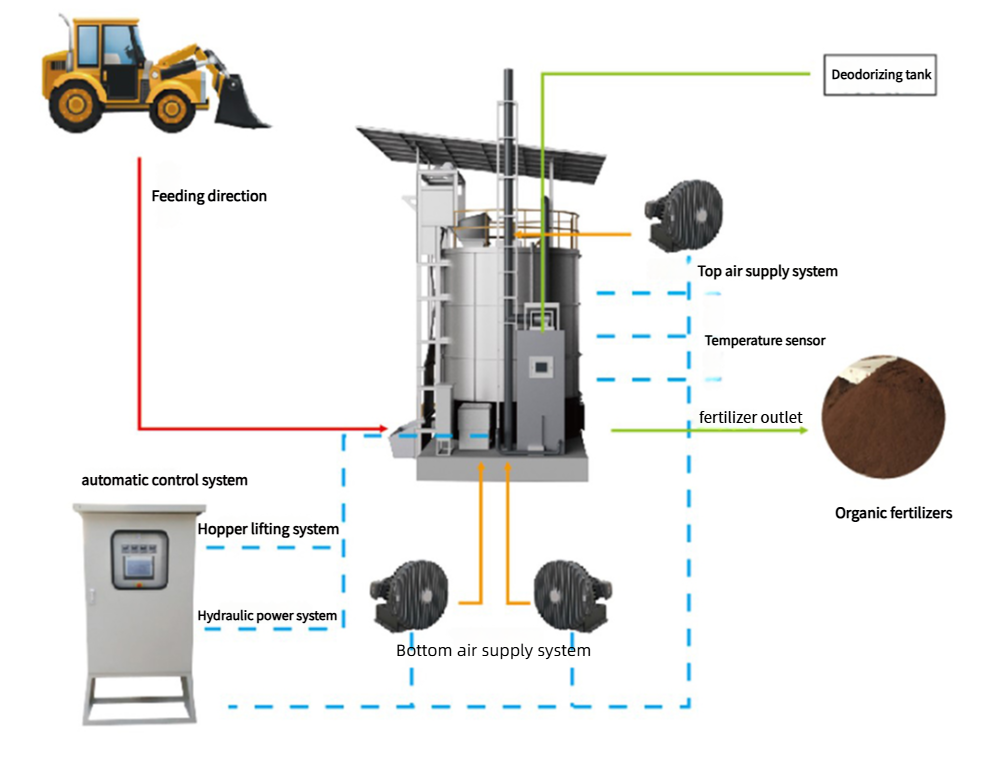

The Vertical Industrial Composter utilizes advanced vertical composting technology, where organic waste enters the facility through the top inlet and passes through different composting layers under the effect of gravity. Each layer is equipped with precise ventilation and temperature control systems to ensure that the composting environment is always in the best condition for microbial decomposition.
Work flow
This vertical layering, multi-system synergy mode realizes the efficient transformation of organic waste and significantly improves the composting efficiency, which can more quickly transform organic waste into high-quality compost compared with traditional composting methods.
Application Scenarios
Livestock and poultry farms
Use the equipment to treat livestock and poultry manure, effectively reduce pollution, produce high-quality compost, and help green farming.
Food processing plant
Food processing waste is processed and transformed into usable resources, realizing the reuse of waste.
City Sludge Treatment Center
Converts sludge into environmentally friendly compost, helping the cause of urban environmental protection.
Organic Fertilizer Plant
Using our equipment to produce high quality compost, widely used in agriculture and horticulture planting, improve soil fertility.

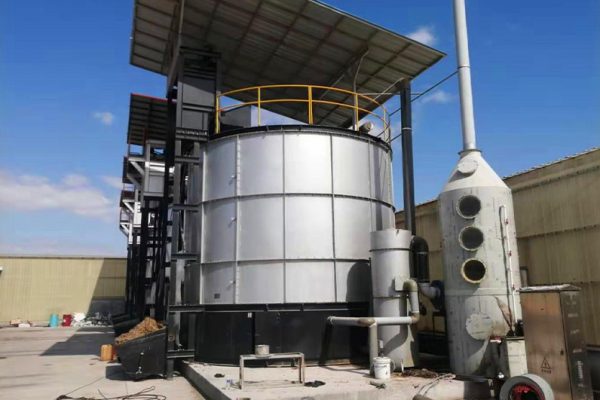

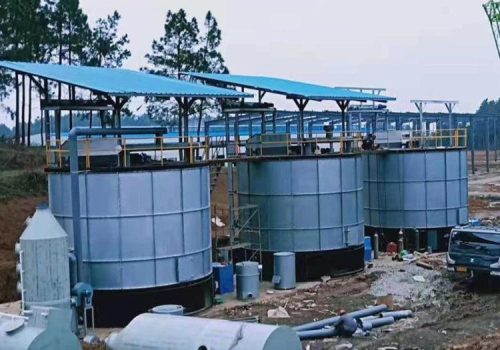

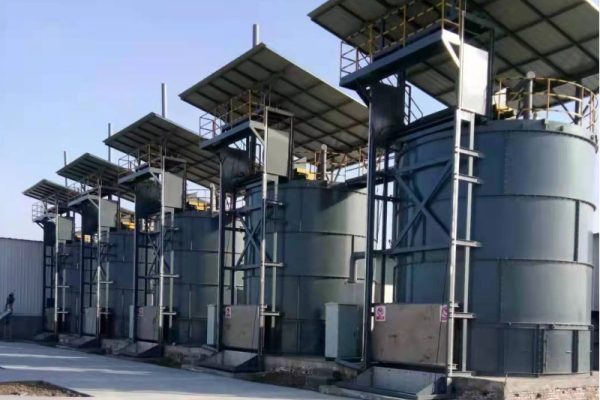

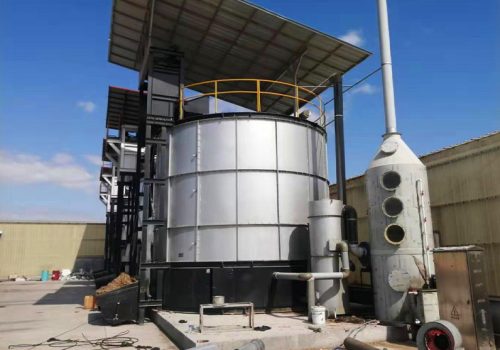

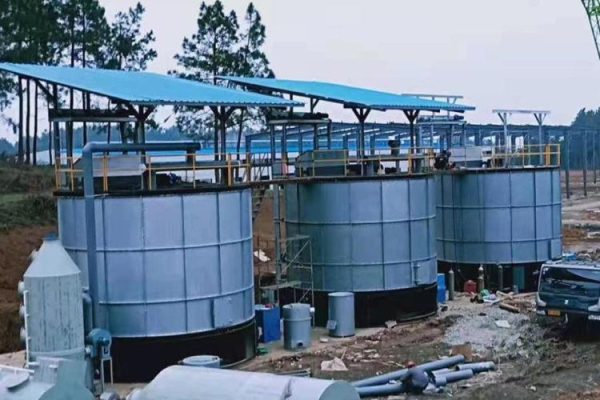

Customer Cases & Results
Work Site Video
We promise to always focus on the customer, provide comprehensive and professional pre-sales consultation, efficient and caring after-sales protection, as well as timely and powerful technical support.
Why Choose Our Vertical Industrial Composter ?
We promise to always focus on the customer, provide comprehensive and professional pre-sales consultation, efficient and caring after-sales protection, as well as timely and powerful technical support.
Fifteen years' experience
We specialize in fertilizer machinery and have a wide range of industrial composting solutions.
Advanced technology
Adopting leading design concepts and production technology to ensure product quality.
Provide customized service
Tailor-made equipment configuration according to customer's needs.
Perfect service system
Provide timely and efficient technical support and after-sales service.
Frequently Asked Questions
The capacity of our Vertical Industrial Composter varies by model, from 5 – 10 tons of organic waste per day for smaller units to 50 – 100 tons or more for larger units. You can choose the right model for your actual processing needs. Our technical team can also recommend the most suitable equipment for you according to your waste production.
With the advanced vertical composting technology, the composting cycle can be shortened to 10 – 15 days under ideal conditions. This is due to the equipment’s precise temperature control, ventilation system and efficient microbial decomposition environment. However, the composting cycle is affected by the type of organic waste, ambient temperature and humidity, etc. Livestock and poultry manure may take a little shorter time to compost, while some fibrous materials may take slightly longer time to compost.
The operation is not complicated. The equipment is equipped with an intelligent control system with a high degree of automation. We will provide you with comprehensive operation training, general staff can be skillful after simple training. The control system interface is simple and intuitive, and you can easily complete the parameter setting, operation monitoring and other operations through the display screen. Moreover, we also provide detailed operation manuals and remote technical support to ensure that you do not have to worry about the use of the process.
Maintenance costs are relatively low. The equipment is made of high quality and durable materials, and the key components are of reliable quality, which reduces the frequency of malfunctions. Routine maintenance mainly includes simple tasks such as regular inspection of ventilation ducts, cleaning of equipment surfaces and replenishment of lubricating oil. We provide perfect after-sales service, free repair and replacement of parts with quality problems during the warranty period, and after the warranty period, we can also provide long-term technical support and spare parts supply at a reasonable price.
It is suitable for almost all kinds of common organic wastes, such as livestock and poultry manure (pig manure, cow manure, chicken manure, etc.), food processing wastes (fruit peels, fruit kernels, vegetable residues, wine lees, etc.), urban sludge, as well as crop residues, garden pruning wastes and so on, all of which can be processed efficiently and converted into high-quality organic fertilizers.
Due to the vertical design, the footprint is much smaller than traditional composting equipment. Smaller plants have a footprint of about 5 – 10 square meters and larger plants only 20 – 30 square meters. The multi-level composting structure further improves space utilization and is ideal for sites with limited space.
