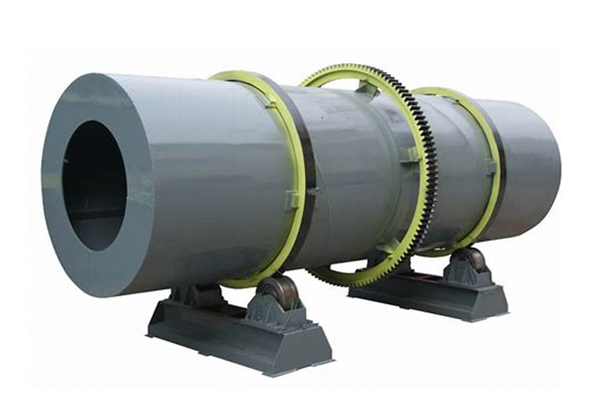

Rotary Drum Organic Fertiliser Granulator
Drum rotary granulation technology, uniform particles, suitable for large-scale production.
Rotary Drum Organic Fertiliser Granulator Introduction
The rotary drum organic fertilizer granulator adopts rotary drum granulation technology, which is suitable for large-scale organic fertilizer production. It can make organic materials such as livestock and poultry manure and straw into uniform particles through wet granulation.
Features and Advantages
After several years of optimization and improvement, the performance and stability of our company’s rotary drum granulator have become increasingly mature, with obvious advantages and characteristics:
Efficient granulation
Adopting horizontal roller design, the material is naturally formed into balls in the rotation, the particle size is 3-6mm (adjustable), and the uniformity is ≥95%. Hourly production capacity of 5-30 tons, 2-5 times higher than the disk / double roller granulation efficiency, suitable for large-scale production of NPK compound fertilizer.
Strong adaptability
Compatible with organic fertilizers (animal and poultry manure, straw), compound fertilizers (urea + ammonium phosphate) and industrial waste residues with moisture content of 20%-40%. Rubber lining + spiral platen design, handle high fiber (straw), high viscosity (molasses) materials without sticking to the wall.
Energy saving and environmental protection
Low rotational speed (9.5-17rpm) + large diameter drum (Φ1.2-3.2m) design, the power of 30 tons/h model is only 37kW, 40% energy saving compared with traditional extruder. Totally enclosed structure + micro-negative pressure system, dust emission <10mg/m³.
Durable and anti-corrosion
The cylinder is made of Q235B boiler steel + 8mm butyl rubber lining (acid and alkali resistant pH 3-11), fixed with 316L stainless steel pressure bar, with 50,000 hours of anti-scouring life (only 8,000 hours for ordinary carbon steel). Cleaning holes + vibratory discharge design reduces downtime to clear clogs by 50%.
Intelligent control
PLC + frequency control system, real-time monitoring of speed, humidity (20%-40% intelligent control). Beginner 30 minutes to start, daily maintenance only need to lubricate bearings, annual maintenance cost <3% of the equipment price.
Flexible configuration
We support customization of capacity (1-50 tons/hour), material and corrosion protection (rubber lining/plastic lining). We can also customize high humidity resistant models (85% humidity) and low temperature resistant models (-40°C), which are available worldwide.
Technical Parameters
| Modle | Motor Power (kw) | Rotation Speed（r/min） | Capacity（t/h) | Roller Diameter (mm) | Roller length (mm) |
|---|---|---|---|---|---|
| HR-550 | 5.5 | 17 | 1-3 | 1200 | 4000 |
| HR-1100 | 11 | 17.5 | 3-5 | 1500 | 6000 |
| HR-1500 | 15 | 17.5 | 5-8 | 1800 | 7000 |
| HR-1850 | 18.5 | 11.5 | 8-15 | 2000 | 8000 |
| HR-3700 | 37 | 9.5 | 15-30 | 3200 | 10000 |
Working Principle
Working Principle of Rotary Drum Organic Fertiliser Granulator
The drum organic fertilizer granulator drives the drum to rotate through the motor. The material rolls in the drum under gravity and gradually sticks into particles. The spray system adds an appropriate amount of water or adhesive to promote the granulation of the material. The particles roll and polish in the drum to finally form uniform and smooth particles.
Application Scenarios
The rotary drum granulator has high efficiency and high quality granulation performance and is widely used in various large-scale fertilizer granulation application scenarios.
Organic Fertiliser Plant
Large-scale production of commercial organic fertiliser to meet the market’s large demand for high-quality fertiliser.
Large-scale farm
Highly efficient treatment of livestock and poultry manure, converted into organic fertiliser pellets, to achieve the reuse of resources.
Agricultural Plantation
Customised organic fertiliser for fruits, vegetables and grain crops to enhance soil fertility and help crops to produce high yields.
Landscape Gardening
Producing fertilisers suitable for garden plants, improving soil structure and allowing greenery to grow more luxuriantly.
Straw Processing Centre
Mixing straw with animal manure for granulation to improve the comprehensive utilisation value of straw.
Industrial Waste Treatment
Manufacturing special organic fertilisers to accurately regulate nutrients and promote the blooming and quality of flowers.
Customer Cases & Results
The performance of our Rotary Drum Organic Fertiliser Granulator has been verified by countless organic fertiliser production lines and highly recognised by our customers.
Agricultural cooperatives
An agricultural cooperative in Anhui, China cooperates with farmers to develop green agriculture. After purchasing a granulator, it collects livestock and poultry manure and straw from farmers to produce organic fertilizer. After using it, the average crop yield increases by 15%.
Organic fertilizer production enterprise
Work Site Video
We promise to always focus on the customer, provide comprehensive and professional pre-sales consultation, efficient and caring after-sales protection, as well as timely and powerful technical support.
Why Choose Our Rotary Drum Organic Fertiliser Granulator ?
We promise to always focus on the customer, provide comprehensive and professional pre-sales consultation, efficient and caring after-sales protection, as well as timely and powerful technical support.
Fifteen years' experience
We focus on organic fertilizer machinery and have rich granulation solutions.
Advanced technology
Adopting leading design concepts and production technology to ensure product quality.
Provide customized service
Tailor-made equipment configuration according to customer's needs.
Perfect service system
Provide timely and efficient technical support and after-sales service.
Frequently Asked Questions
The drum granulator is suitable for processing a variety of organic materials, including livestock and poultry manure, straw, sludge, garden waste, kitchen waste, etc. Its design can adapt to high-humidity and high-viscosity materials and has a wide range of applications.
The drum granulator rolls the material into granules through the drum rotation and spray system. The granules are uniform, smooth and have a high forming rate. The particle diameter is usually 2-8mm and can be adjusted according to demand.
The equipment structure is reasonably designed and maintenance is simple. Only the wear of the drum, spray system and transmission parts needs to be checked regularly, and lubrication and maintenance are performed. The daily maintenance cost is low, and the equipment runs stably and reliably.
Yes, the particle size can be controlled by adjusting the drum speed, spray volume and material humidity. The common particle diameter is 2-8mm, and customers can flexibly adjust it according to production needs.
The drum granulator is made of high-quality stainless steel or carbon steel. The key components are treated with anti-corrosion and have strong corrosion resistance. It is suitable for long-term processing of high-humidity and highly corrosive materials.
Support customized services, and can customize equipment with different production capacities according to customer needs. The standard production capacity is 5-20 tons/hour, and equipment with larger production capacity can also be customized according to the production scale.
