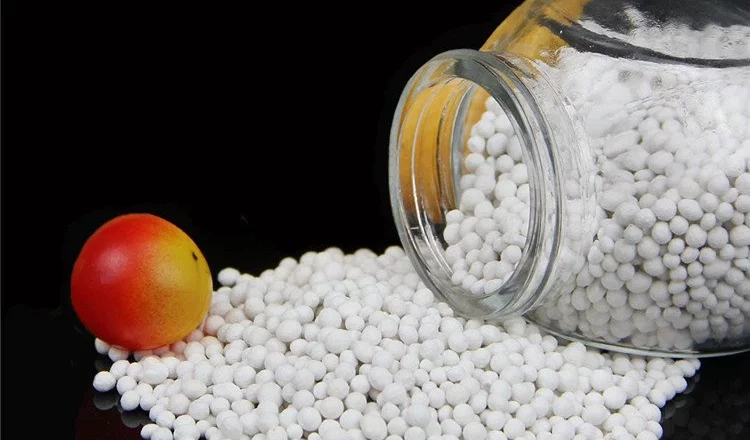

What Is Ammonia-Acid Method NPK Granulation?
Ammonia-acid method NPK granulation (also widely known as tubular reactor NPK granulation or ammonia granulation) is a professional chemical wet granulation technology tailored forhigh-quality compound fertilizer production. It manufactures uniform, high-strength NPK compound fertilizers through the controlled exothermic reaction of mixed phosphoric and sulfuric acid and gaseous synthetic ammonia in a sealed industrial tubular reactor.
Unlike traditional mechanical drum granulation methods that solely rely on physical mechanical bonding and water adhesion to form particles, this advanced process utilizes chemical neutralization reaction heat to mold stable fertilizer granules withsuperior nutrient solubility and uniformity. This core difference makes it the preferred process for commercial grade NPK fertilizer mass production.
At Huaxin Machinery, we specialize in designing and manufacturing turnkey ammonia-acid NPK granulation production lines with annual capacities ranging from 50,000 to 300,000 tons. Our full-set equipment integrates mature tubular reactor technology, precise automatic temperature and pH control systems, and energy-saving drying and cooling units—all fully optimized for stable continuous operation, low industrial energy consumption, and consistent premium product quality.
Core Principles of Ammonia-Acid NPK Granulation
The technology is built on three core chemical and physical principles that ensure superior product performance:
1. Exothermic Neutralization Reaction
The foundation of the process is the violent exothermic reaction between mixed acids (phosphoric acid: 19-27% concentration; sulfuric acid: 93-98% concentration) and gaseous ammonia in a sealed tubular reactor. The reaction occurs at 140-180°C and 0.2-0.5MPa, generating significant heat that raises the material temperature to 75-85°C—ideal for granulation. This heat eliminates the need for external heating in the granulation stage, drastically reducing energy consumption.
2. Slurry Formation and Spray Granulation
The neutralization reaction produces a homogeneous NPK slurry with a pH of 4.5-5.5. This slurry is sprayed into a rotating drum granulator through high-pressure nozzles, where it coats recycled fine particles (seed crystals) and forms uniform spherical particles. The high temperature of the slurry (maintained by reaction heat) causes partial water evaporation, resulting in low-moisture, high-strength granules.
3. Nutrient Uniformity and Stabilization
The tubular reactor ensures instant and complete mixing of raw materials (reaction time <10 seconds), resulting in perfectly uniform distribution of nitrogen, phosphorus, and potassium in every particle. The chemical reaction also stabilizes nutrients, preventing degradation of water-soluble phosphorus and ensuring long-term fertilizer efficiency.
Detailed Process Flow of Ammonia-Acid Method NPK Granulation
Our Huaxin Machinery production lines follow a streamlined 8-step process designed for maximum efficiency and product quality:
Step 1: Raw Material Preparation and Proportioning
Key raw materials: phosphoric acid, sulfuric acid, synthetic ammonia, potassium chloride (or potassium sulfate), and optional additives (trace elements, anti-caking agents). Raw materials are precisely metered and mixed according to the desired NPK ratio (e.g., 20-10-20, 15-15-15).
Step 2: Mixed Acid Preparation
Sulfuric acid is diluted with water in a dedicated acid mixer, and the dilution heat is recovered to preheat phosphoric acid. The mixed acid (phosphoric + sulfuric) is then pumped into the tubular reactor—this step optimizes reaction efficiency and reduces equipment corrosion.
Step 3: Tubular Reactor Neutralization
Mixed acid and gaseous ammonia are injected into the tubular reactor at controlled rates. The intense exothermic reaction produces NPK slurry with a temperature of 140-180°C. The reactor’s design ensures complete reaction (neutralization degree = 1.5) and eliminates unreacted materials.

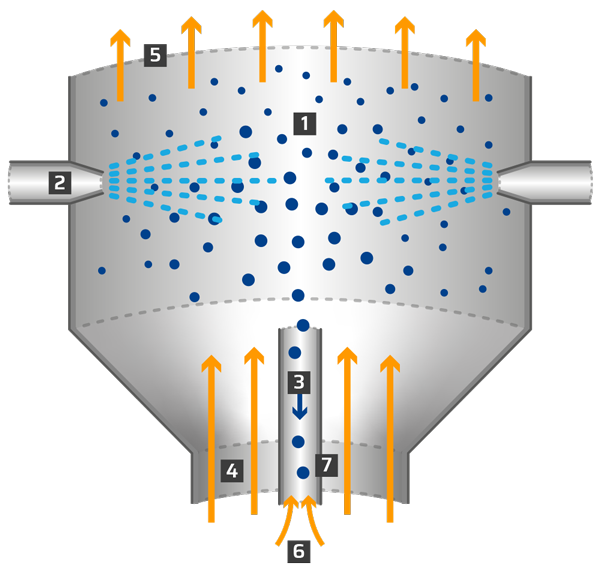

Step 4: Spray Granulation in Rotary Drum
The hot NPK slurry is sprayed into a rotating drum granulator (diameter: 2.5-6m). Recycled fine particles (10-20% of feed) act as seed crystals, and the slurry coats these seeds to form granules. The drum’s rotation (speed: 6-20r/min) ensures uniform particle growth.
Step 5: Drying
Wet granules (moisture: 8-12%) are fed into a rotary dryer heated by a gas/oil-fired hot air furnace. The dryer reduces moisture to ≤0.5% while maintaining particle strength. Thanks to reaction heat, coal consumption is only ~10kg per ton of fertilizer—far lower than other methods.
Step 6: Cooling
Hot dry granules (60-80°C) are cooled to ≤40°C in a rotary cooler to prevent caking during storage. Cooling also improves particle hardness and stability.
Step 7: Screening and Coating
Granules are screened into three fractions:
- Qualified particles (1-4mm): Sent to coating
- Fine particles (<1mm):
- Recycled to granulator as seed crystals
- Oversized particles (>4mm): Crushed and recycled
Qualified particles are coated with an anti-caking agent (mineral oil + surfactant) to prevent moisture absorption and caking.
Step 8: Packaging
Finished NPK fertilizer is automatically packaged into 25kg/50kg bags for storage and shipment.
Key Advantages of Ammonia-Acid Method NPK Granulation
After years of on-site testing and customer feedback, I’ve summarized the 7 most significant advantages of this technology over other granulation methods:
1. High Nutrient Content and Quality
- Nitrogen: ≥14% (up to 16-18%), exists in three forms (ammonium, nitrate, amide) for balanced crop absorption
- Water-soluble phosphorus: ≥95% (vs. ~80% for spray granulation), ensuring maximum phosphorus availability
- Low chloride: <3% (sulfur-based formula), safe for chloride-sensitive crops (tobacco, grapes, potatoes)
- No biuret: Eliminates root burn risk, safe for seed application
2. Low Energy Consumption and Cost Savings
- Reaction heat utilization: Eliminates external heating for granulation, reducing energy costs by 30-40%
- No phosphoric acid concentration: Saves 30-40% on equipment investment (no need for concentration units)
- High granulation rate: 80-85% (vs. 60-70% for drum granulation), reducing recycle load and energy use
- Low coal consumption: ~10kg/ton fertilizer (vs. 20-30kg/ton for other methods)
3. Uniform Particle Size and Strength
- Particle size: 1-4mm, uniform distribution (≥90% of product in spec range)
- Particle strength: ≥20N/particle, resistant to breakage during transportation and storage
- Smooth surface: Reduces dust generation and improves product marketability
4. Wide Raw Material Adaptability
- Accepts low-grade phosphate ore (P₂O₅: 19-27%), reducing raw material costs
- Compatible with various potassium sources (KCl, K₂SO₄) and additives (trace elements, humic acid)
- Flexible NPK ratio adjustment: Easily produces high-nitrogen, high-phosphorus, or high-potassium formulas
5. Environmental Friendliness
- Closed reaction system: No ammonia leakage or dust emissions
- HCl gas recovery: Byproduct HCl (from KCl + H₂SO₄ reaction) is absorbed and recycled as hydrochloric acid
- Low waste discharge: All recycled materials (fines, Oversized particles) are reused, achieving near-zero waste
6. Long Service Life and Easy Maintenance
- Huaxin Machinery’s equipment uses corrosion-resistant alloys for key parts (tubular reactor, spray nozzles), extending service life to 15-20 years
- Modular design enables quick replacement of worn parts, reducing downtime to <24 hours
- PLC automatic control system minimizes manual intervention and reduces human error
7. Strong Market Competitiveness
Fertilizers produced by ammonia-acid granulation have higher nutrient availability, better physical properties, and lower production costs—making them more competitive in both domestic and international markets. Our customers report 20-30% higher profit margins compared to traditional granulation methods.
Ammonia-Acid Method vs. Other NPK Granulation Methods
To help you make an informed decision, here’s a detailed comparison of ammonia-acid granulation with three common alternative technologies:
1. Ammonia-Acid vs. Spray Granulation
| Parameter | Ammonia-Acid Method | Spray Granulation |
|---|---|---|
| Reactor Type | Tubular (10s reaction, complete) | Tank (30min reaction, incomplete) |
| Nitrogen Content | ≥14% (3 forms) | ≤12% (1-2 forms) |
| Water-Soluble Phosphorus | ≥95% | ~80% |
| Granulation Rate | 80-85% | 60-70% |
| Energy Consumption | Low (reaction heat utilized) | High (external heating required) |
| Investment Cost | Medium (saves concentration units) | High (requires concentration units) |
2. Ammonia-Acid vs. Tower Granulation
| Parameter | Ammonia-Acid Method | Tower Granulation |
|---|---|---|
| Particle Shape | Irregular, high strength | Spherical, hollow |
| Biuret Content | Irregular, high strength | Spherical, hollow |
| Biuret Content | 0% | ≤1.5% (risk of root burn) |
| Raw Material Requirement | Low-grade phosphate acceptable | High-purity raw materials required |
| Production Flexibility | High (easy formula adjustment) | Low (fixed formula, high nitrogen only) |
| Investment Cost | Medium (50k-300k tons/year) | Very high (≥300k tons/year only) |
3. Ammonia-Acid vs. Drum Granulation (Physical)
| Parameter | Ammonia-Acid Method | Drum Granulation (Physical) |
|---|---|---|
| Granulation Principle | Chemical reaction + heat | Mechanical bonding + water |
| Nutrient Uniformity | Excellent (particle-level uniformity) | Poor (uneven nutrient distribution) |
| Particle Strength | High (≥20N/particle) | Low (≤10N/particle) |
| Caking Resistance | Excellent (low moisture + coating) | Poor (high moisture + weak bonding) |
| Production Capacity | High (20-30 tons/hour) | Low (5-15 tons/hour) |
Applications of Ammonia-Acid Method NPK Fertilizers
Thanks to their balanced nutrients, high solubility, and safety, NPK fertilizers produced by ammonia-acid granulation are widely used in:
- Field crops: Wheat, corn, rice, cotton (improves yield by 10-15%)
- Cash crops: Fruits, vegetables, tobacco, tea (enhances quality and market value)
- Horticulture: Flowers, ornamental plants (safe for root and foliar application)
- Soil types: Suitable for all soil types (acidic, neutral, alkaline) and adaptable to diverse climate conditions
Why Choose Huaxin Machinery for Your Ammonia-Acid NPK Granulation Line?
With 20+ years of experience in fertilizer equipment manufacturing, Huaxin Machinery is a leading provider of ammonia-acid method NPK granulation solutions in China. Here’s why our customers trust us:
- Proven Technology: Our tubular reactor technology is licensed from the China National Phosphate Fertilizer Research Institute, with 100+ successful installations worldwide.
- Customized Solutions: We design production lines tailored to your capacity (50k-300k tons/year), NPK ratio, and local raw material availability.
- Turnkey Service: From design and manufacturing to installation, commissioning, and operator training—we provide end-to-end support.
- Quality Assurance: All equipment is manufactured in compliance with ISO 9001 standards, with a 12-month warranty and lifelong technical support.
- Global Customer Base: Our equipment is exported to 30+ countries (Southeast Asia, Africa, Middle East, South America) with consistent positive feedback.
FAQ About Ammonia-Acid Method NPK Granulation
Q1: What is the minimum investment for a small-scale ammonia-acid NPK granulation plant?
A: A standard 50,000-ton annual capacity NPK production line requires a total equipment investment of USD 800,000-1,200,000 (excluding civil construction), 30-40% lower than spray granulation lines of the same scale, with lower entry barriers for small and medium fertilizer enterprises.
Q2: What is the average payback period of this NPK fertilizer production project?
A: With a stable profit of USD 20-30 per ton of finished fertilizer, the project payback period is only 1.5-2 years, far shorter than traditional physical granulation projects, with low investment risk and high return efficiency.
Q3: Can the ammonia-acid method produce organic-inorganic compound NPK fertilizer?
A: Yes. We can optimize the production formula to add 20-30% organic raw materials such as humic acid and decomposed straw, producing qualified organic-inorganic compound fertilizers while ensuring stable granulation efficiency and product quality.
Q4: What technical requirements do production operators need?
A: Our production lines adopt full PLC automatic intelligent control with a simple human-computer interface. Operators only need 3-5 days of professional training to master full-process operation. We provide free training manuals and on-site engineer guidance.
Q5: How to solve common problems such as low granulation rate and fertilizer caking?
A: For low granulation rate, adjust the slurry temperature to 75-85°C and pH value to 4.5-5.5, and appropriately increase recycled fine seed particles. For NPK fertilizer caking issues, control the finished product moisture below 0.5%, cool the packaging temperature below 40°C, and optimize anti-caking agent coating dosage.
Q6: Is the ammonia-acid granulation process environmentally compliant for factory operation?
A: Completely compliant with international environmental protection standards. The fully closed reaction system avoids ammonia leakage and dust pollution, by-product gas is fully recycled, and all waste materials are reused, realizing clean production and meeting global industrial emission requirements.
Q7: What is the maximum capacity of a single ammonia-acid NPK production line?
A: Huaxin Machinery’s customized single production line can reach a maximum annual capacity of 300,000 tons (20-30 tons per hour), meeting the large-scale industrial production demand of large fertilizer factories.
Q8: Can this technology produce high-potassium special NPK fertilizers for cash crops?
A: Absolutely yes. The process supports all conventional NPK ratio formulas, including high-potassium formulas such as 10-5-25 and 15-5-30. We adjust raw material ratio and reaction parameters to ensure stable granulation and qualified product indexes for special crop fertilizers.
Q9: What is the service life of core production equipment?
A: The corrosion-resistant alloy tubular reactor has a service life of 15-20 years, the rotary granulator and dryer can be used for 10-15 years, and wearable ceramic nozzles are easy to replace, ensuring long-term stable factory operation.
Q10: What after-sales support does Huaxin Machinery provide for overseas clients?
A: We provide 12-month free equipment warranty and lifelong remote technical support. All conventional spare parts are in stock and can be shipped globally within 72 hours, with overseas engineer on-site debugging and maintenance services available.
